New JD Starfire 6000 Receiver vs SF 3000

by Lucas Veale, Assumption, IL

The John Deere Starfire 6000 receiver is now available for order.  This SF6000 receiver uses 3 correction satellites for improved signal and accuracy and can receive the new SF3 differential signal.   SF3  replaces the SF2 signal on the SF 3000 receiver.  The new SF3 signal delivers +/- 3 cm pass-to-pass accuracy, less than 30 minute pull in time, and in-season repeatability without the need for RTK radios or base stations.

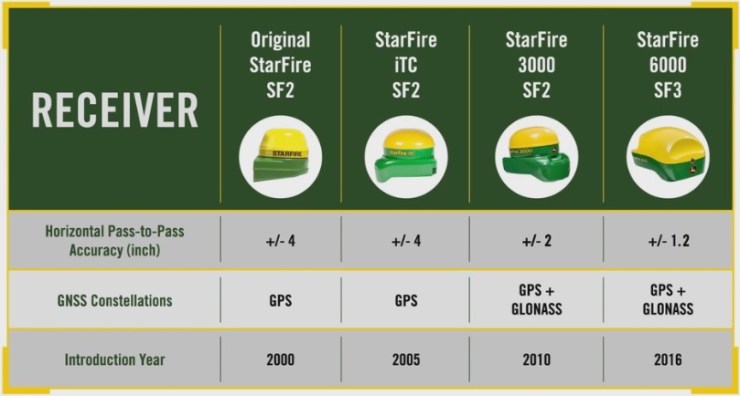

Deere Receivers Thru the Years

Deere Receivers Thru the Years

At the base/free level of SF1 accuracy, there is virtually no difference between the SF 6000 and the SF 3000.

The next level of accuracy for the SF 6000 is SF3 and it requires a subscription.  This signal is comparable to the SF2 signal for the SF 3000 receiver.  New for the SF6000 is 3 cm accuracy using SF3 vs  5 cm accuracy on the SF3000 using SF2.   The SF3 signal will allow for in season repeatability of 3 cm.  There is no repeatability with the SF2 signal on the SF3000 receiver.  Please note, the SF3 signal will only work on SF6000’s.

SF6000 Signal Comparisons

SF6000 Signal Comparisons

The new John Deere Starfire 6000 is only compatible with GS 1800, GS 2630, GS 3 Command Center, and Gen 4 4600 displays.

There is now a USB port on the receiver for faster software updates, typically 3 minutes vs 20-30 minutes on older receivers.

USB Port for Faster Software Updates

USB Port for Faster Software Updates

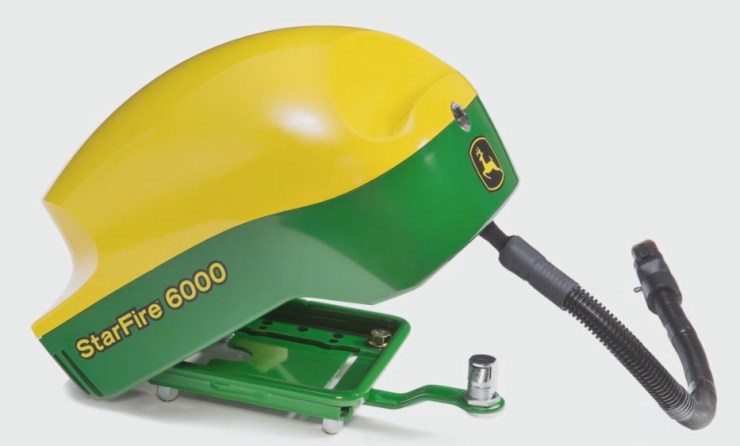

Currently there’s only a deluxe style mount with optional locking system.

Receiver Lock for Security

Deluxe Mount with Optional Locking System

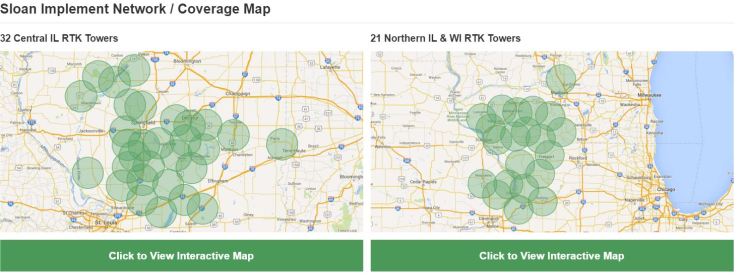

RTK accuracy will be the same between the SF3000 and SF6000.  You can see Sloan’s RTK coverage and learn more about this technology by visiting our RTK website by clicking here.

Click to View Our RTK Network

Click to View Our RTK Network



Sloan Support is written by the product support team at Sloan Implement, a 20 location John Deere dealer in Illinois and Wisconsin.   Learn more at www.sloans.com
